MC-5848R Four Doors Access Control Board (RS485 Communication)

MC-5800 series access control board is a new generation of intelligent network access control products. It adopts network processor and mass storage to develop real network data exchange, data high-speed calculation and user data management. MC-5800 series access control board not only has common, in addition to the access control function, it also provides some practical functions that other similar products on the market do not have or rarely have. For specific functions, please refer to the product "System Functions".

MC-5800 series access control board products are mainly composed of: FC-8610 series time attendance access controller, MC-5812R one door access controlboard, MC-5824R two doors access controller, FC-8880 base station two doors access control board, MC-5848R Four doors access control board, FC-8832 elevator access control board, etc., a total of 16 models, the suffix of the product model is A type controller which means RS485+TCP/IP dual communication mode, and the suffix is R type controller which means RS485 communication mode, the suffix T-type controller indicates the use of TCP/IP communication, and the suffix W-type controller indicates the use of wireless communication. All of the above models can be mixed and networked regardless of the communication method, and managed through a set of software to achieve one card, a library of real one card pass management application.

System functions:

MC-5800 series support (Conventional function)：Offline Operation, Reading Card Unlocking, Passwords Unlocking, Reading Card+Passwords Access, Period Reading Card+Passwords Unlocking, Manual Input Card Number + Passwords Unlocking, First Card Unlocking, Normal Card Unlocking, Remote Unlocking, Remote Locking, Unlocking at definite time, Priod Normally Open, Real Time Supervision, Abnormally Supervision, E-map, Duress Alarm, Fire Alarm Linkage, Robber Alarm, Illegal Break In Alarm, Illegal Card Alarm, Missing card Management, Black list Card Alarm, Door open time out Alarm/Prompt, Anti-passback And Anti-tail, Bulk Data Uploading, Small Group Data Uploading, Dual Door Interlocking, Multi-Door Interlocking, Multi-Card Unlocking, Keypad Programming, Emergency Locking, Time Attendence, 64 Groups Time zone, Holidays and etc.

MC-5800 series support (Professional function)：Card return, record restoration, anti-detection lock, card reading verification, full card opening, full card opening + automatic registration, main board buzzer switch, clock self-repair, internal and external authentication opening, 3+1 authentication opening the door, number of people inside the door Inquiry, telephone connection notification after alarm, the number of days the device has been running, remote hardware program upgrade, etc.

MC-5800 series support (New function)：In addition to the above functions, we have also added technologies that are not available or rare in other similar products on the market for the MC-5800 series of access control boards, such as: card reader circuit abnormality detection and prompt, system environment temperature detection, input power temperature monitoring, trial period, access control online guard tour, advance notification of card expiration date, intelligent clock error self-correction every day, exit switch controlled by time period, remote card reading and photo taking, anti-theft alarm host function, card reading interval setting, door sensor alarm time period management, communication encryption data, card valid times, self-expanding capacity, Wiegand keyboard issuance and other new functions. MC-5800 series access control board is one of the advanced access control products at home and abroad.

All of the above models can use FCARD3500 or newer version of the one card pass management system software. The software system supports ACCESS and SQL database, supports local connection communication, and can also remotely communicate with the Internet.

System Software:

MC-5800 series controller adopts FCRD3500 or above one card pass management system as system software. The system software supports two databases, SQL and ACCESS, and supports WIN XP, WIN 2003, WIN 7, WIN10 and other system platforms.

FCARD3500 one card pass management system adopts nine modular structure designs: system data module, system graphic monitoring module, personnel management module, access control system module, time attendance system module, elevator access control module, guard tour system module, conference sign-in module, consumption management module equals one.

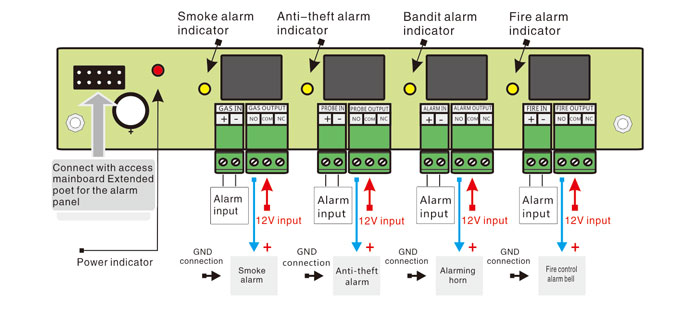

MC-5800B Access Control Linkage Board

Mainly used to cooperate with MC-5800 series access control board, alarm linkage: it can be connected with fire alarm input and output, police input and output, poison gas alarm input and output, anti-theft alarm input and output, etc.

Software Photoes:

FCARD3500A Ver6.40 version provides: OEM packaging tool, ICPasswordEdit password sector edit, encryption and decryption tools, device search and test tools, visitor management system, three part control system and ACCESS-SQL database conversion tool etc free tools.Through the SQL database, it can be combined with FCARD5000T POS system, FCARD6000 POS system, parking lot system, which can realize: access control, time attendance, guard tour, elevator, conference sign-in, POS, water control, electric control, parking lot charge, vehicle guidance and integration, to achieve one card pass system, one database management.

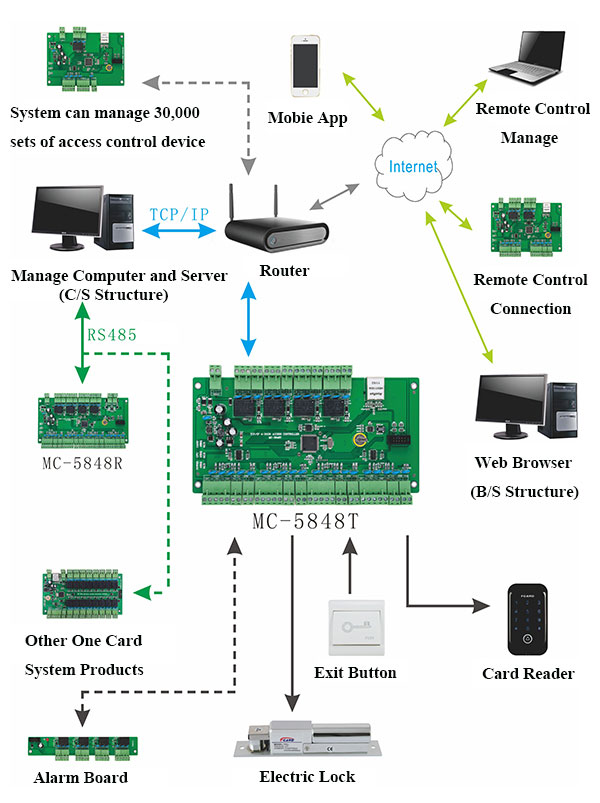

Wiring Connection Diagram:

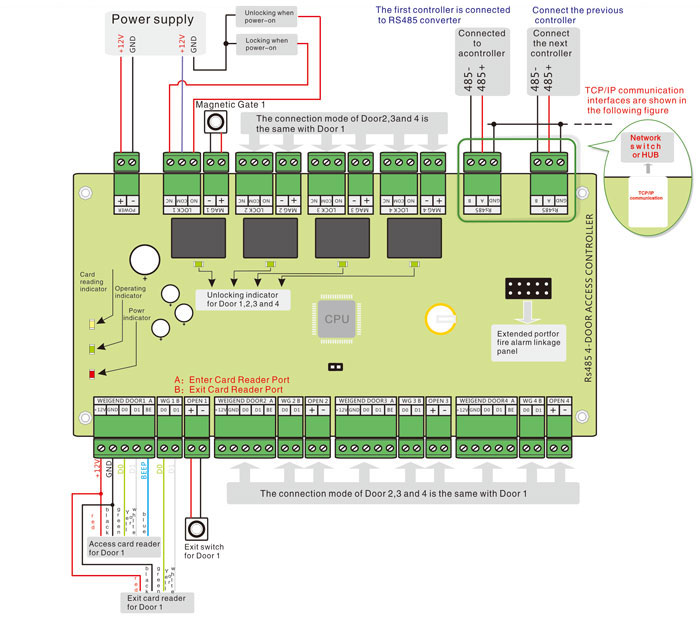

Wiring Diagram:

Factory Photoes:

Compatible with FCARD one card pass management system, support: unified management of access control,offlineaccess control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
