FC-8800 series access control products mainly include: FC-8610 professional time attendance access controller, FC-8810 one door access control board, FC-8820 two doors access control board, FC-8880 base station two doors access control board, FC-8840 four doors access control board, FC-8832 elevator access control board, etc., a total of 16 models.
FC-8800 series access control board is a new generation of intelligent network access control products. The network processor is combined with the development and design of mass storage to realize the real networked data exchange, high-speed data calculation and user data management. FC-8800 series access control board not only has commonly used access control functions, it also provides some practical functions that other similar products on the market do not have or rarely have. For specific functions, please refer to the product "function introduction".

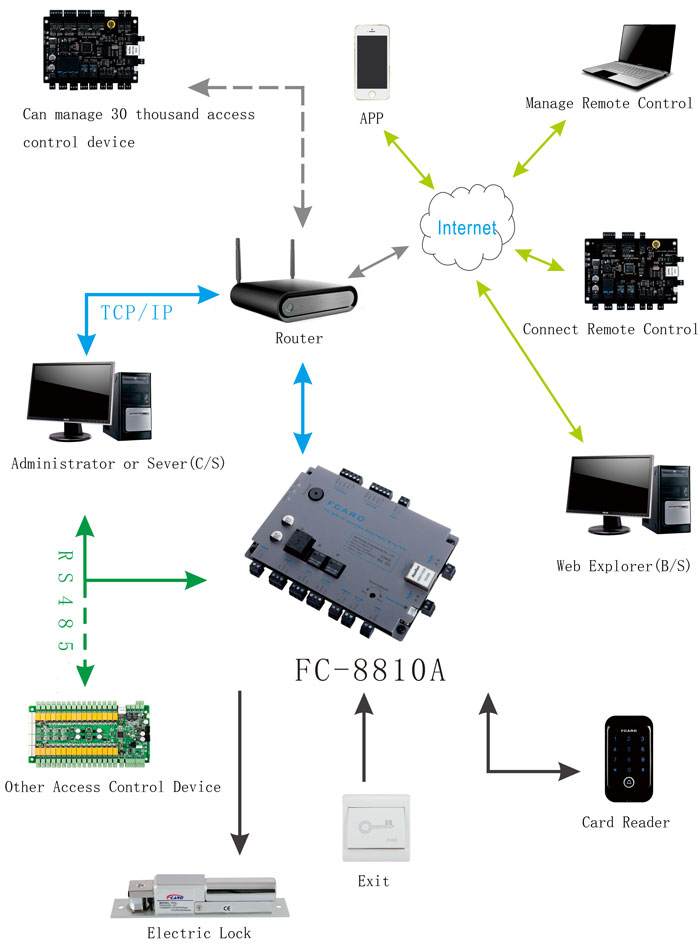

FC-8800 series access control products mainly include: FC-8610 professional time attendance access controller, FC-8810 one door access control board, FC-8820 two doors access control board, FC-8880 base station two doors access control board, FC-8840 four doors access control board, FC-8832 elevator access control board, etc., a total of 16 models. The suffix of the product model is A-type controller, which means it adopts RS485+TCP/IP dual communication mode; the suffix is R-type controller which means it adopts RS485 communication mode; the suffix is W-type controller means it adopts microwave high-frequency wireless communication mode. All the above models can be mixed and networked regardless of the communication method, and managed through a set of software to realize the real one card pass management application of one card and one library.
All of the above models can use FCARD3500 or newer version of the one card pass management system software. The software system supports ACCESS and SQL database, supports local connection communication, and can also remotely communicate with the Internet.
Model: FC-8810A
Door Number: 1
Oper.Temp: -25℃-70℃
Humidity: 10-90%RH
Voltage: DC12V <500mA
Capacity: 156k users, 250k records
Upgrading: 312k users, 500k records
Off Power Safe: Flash memory available, 10 years
Data Protection Preservation
Wiegand I/O: Wiegand 26/34
Port No.: 2 Wiegand card reader ports
Distance: 100M communication distance
Other I/O: 1 push button&1 magnet release
Lock Relay: 1 set
Current: Max 250V, 6A
Alarm Relay: Two group
Language: Chinese (Pre-set), English, Cantonese
Other Language could be Pre-booked
Common Function
Professional Function
New Function
FC-8800 series access control board adopts FCARD3500 Ver6.30 or above one card pass management system as the system software. The system software supports two databases, SQL and ACCESS, and supports WIN XP, WIN 2003, WIN7 and other system platforms.
FCARD3500 one card pass management system adopts nine modular structure designs: system data module, system graphic monitoring module, personnel management module, access control system module, time attendance system module, elevator access control module, guard tour system module,consumption management module equals one.

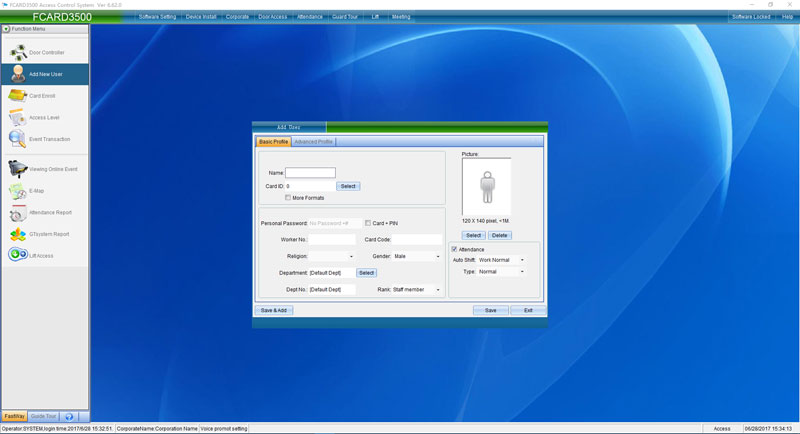

Software Photoes:
FC-8800 series controller adopts FCARD3500 Ver6.30 or above one card pass management system as the system software. The system software supports SQL and ACCESS databases, and supports WIN XP, WIN 2003, WIN7 and other system platforms.
FCARD3500 one card pass management system adopts nine modular structure designs: system data module, system graphic monitoring module, personnel management module, access control system module, time attendance system module, elevator access control module, guard tour system module,consumption management module equals one.
This series is equipped with RS485, TCP/IP interface, Chinese voice, fire alarm input and output, bandit alarm input and output, temperature monitoring, voltage monitoring, fault reset, simultaneous communication of multiple machines and other functions.
Parameters:

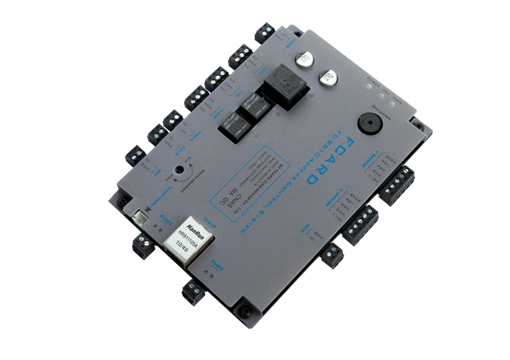

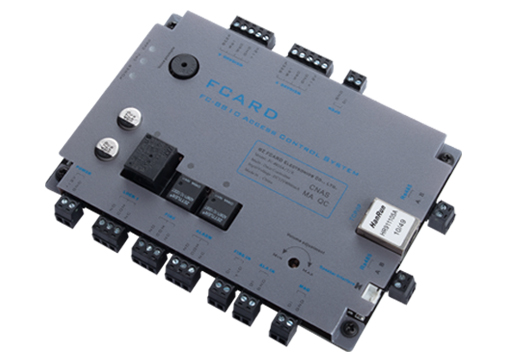

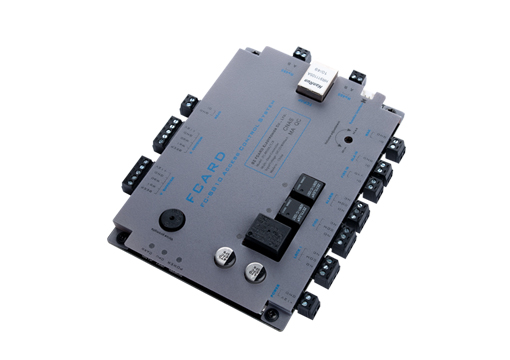

FC-8810 One Door Access Control Board
Size：150×105×20mm
Manage 1 door, support 52,000 user records, 200,000 event records (can storage reading, alarm, push button, door sensor, system operation etc records) provide 3 groups lock relay output(1 group lock relay output, 2 groups alarm relay output), 1 group door sensor, 2 groups WG26, 34 interface, 2 groups RS485 and 1 group TCP/IP, support DC9V-14V, working current <300mA. This controller provides all the functions marked above "System Function".
This series products all has RS485, TCP/IP interface, Chinese voice, fire alarm input and output, bandit alarm input and output, temperature monitoring, voltage monitoring, fault reset, multi machine simultaneous communication and other functions.

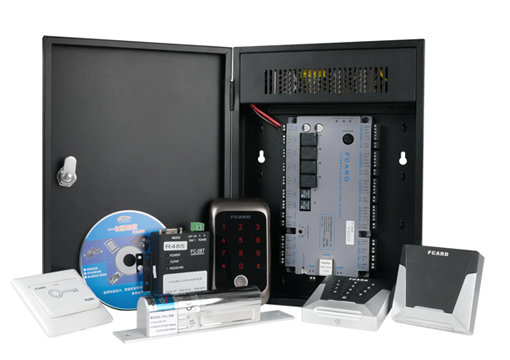

Accessories:

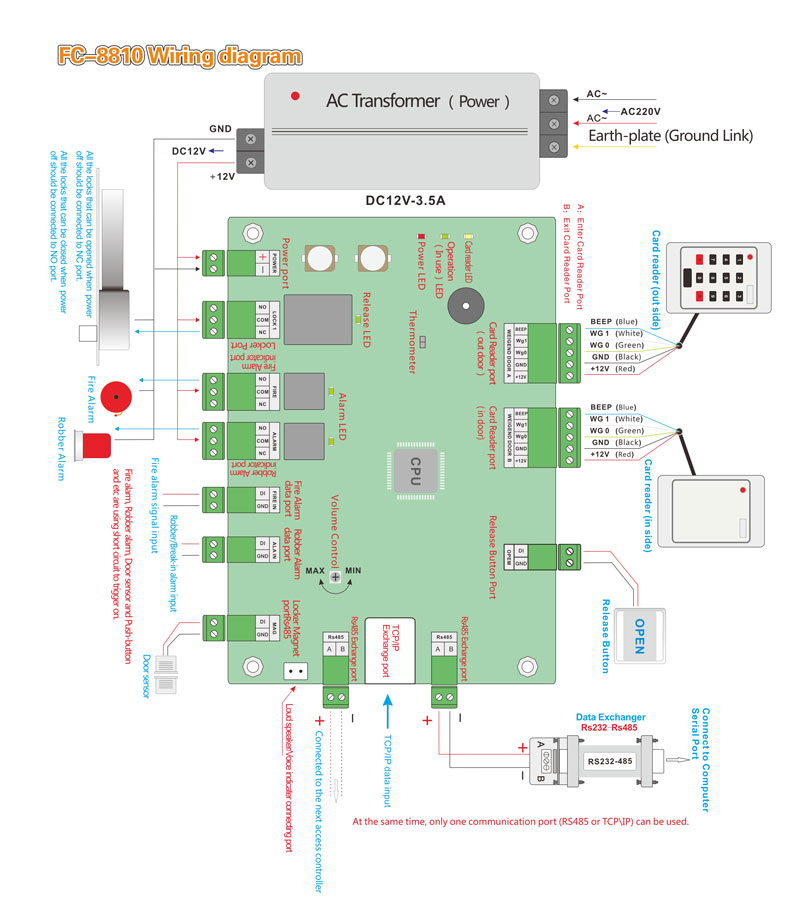

Wiring Diagram:
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
