  • Metal Keyboard RFID Card Reader
  • Keyboard RFID Card Reader
  • FC-161 Keyboard RFID Card Reader
FC-161 Digital Keypad Metal Card Reader
FC-161 Digital Keypad Metal Card Reader?is consisted of ID type and Mifare type. This card reader adopts the advanced RFID receiving circuit design and embedded micro-controller, and combines the efficient decoding algorithm to complete the reading of 64 bits read-only EM4100 compatible ID card.

FC-161 Digital Keypad Metal Card Reader is suitable for access control, time attendance, charge, anti-theft and other radio frequency identification applications.

Product Introduction

Metal Keyboard RFID Card Reader

FC-161 Digital Keypad Metal Card Reader


FC-161 Metal Keyboard RFID Card Reader is consisted of ID type and Mifare type. This card reader adopts the advanced RFID receiving circuit design and embedded micro-controller, and combines the efficient decoding algorithm to complete the reading of 64bits read-only EM4100 compatible ID card. FC-161 metal keyboard RFID card reader Mifare type adopts 13.56MHz reading frequency. Combined with encryption algorithm, it supports the reading of zero sector data of MIFARE format Mifare card. After operation and decoding, the card number is obtained, and the misreading rate of key access card reader is less than 0.01%. Support keyboard, support WIEGAND output keyboard command, the series of products with high sensitivity, low working current, single DC power supply, low price, high performance characteristics.

FC-161 Metal Keyboard RFID Card Reader is suitable for access control, time attendance, charge, anti-theft and other radio frequency identification applications.

Product Parameters

Working Mode: Wiegand 26/34

Reading Speed: < 0.2s

Reading Interval: < 0.5s

Reading Distance: 0-60mm (ID card) 0-50mm (Mifare card)

Reading Type: ID card/Mifare card

Reading Frequency: 125KHz/13.56MHz

Working Temperature: - 0℃ to 65℃

Working Humidity: 10-90%

Voltage: DC10.8-13.8V -> Standard DC 12V

Build in LED: Three groups LED

Build in Speaker: Buzzer

Working Current: 120-180mA

Networking: WG 26/34 bits standard format data output

Communication Distance: 100m

Transfer Way: Real time

Shell Material: zinc alloy + acrylic board

Product Advantages:

FC-161 metal keypad access card reader, with advanced rf receiving circuit design and embedded micro-controller, aluminum alloy shell and acrylic panels, strong body to enhance system security, show its high-end quality.


Size:

Keyboard RFID Card Reader Size

Keyboard RFID Card Reader size

Instruction:

Metal Keyboard RFID Card Reader When the card close the card reader, the reader red light will change into green light, flash 1s then into red light, buzzer sounds once time means sending data, same ID card, if reading interval shorter than 500ms between two times reading, the second times reading is invalid. After reading, if the card still in the RF area it will not do any response. Different card separately into RF area, it will continuously to read card and output data.

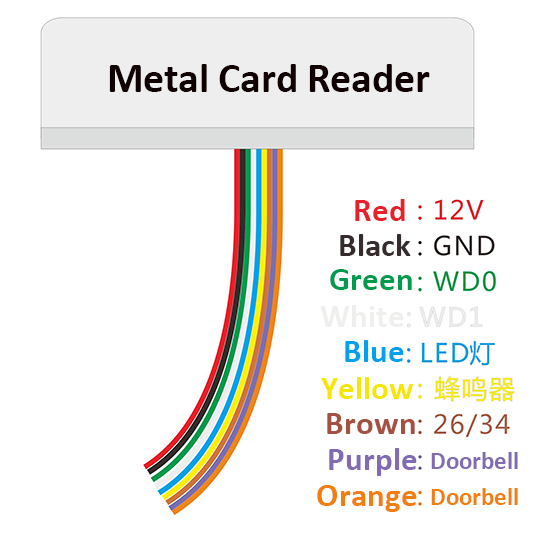

Wiring Illustration:

FC-161 metal keypad access card reader support WG26/34 format output, supply LED control and BEEP control line.

Metal card reader Wiring Illustration

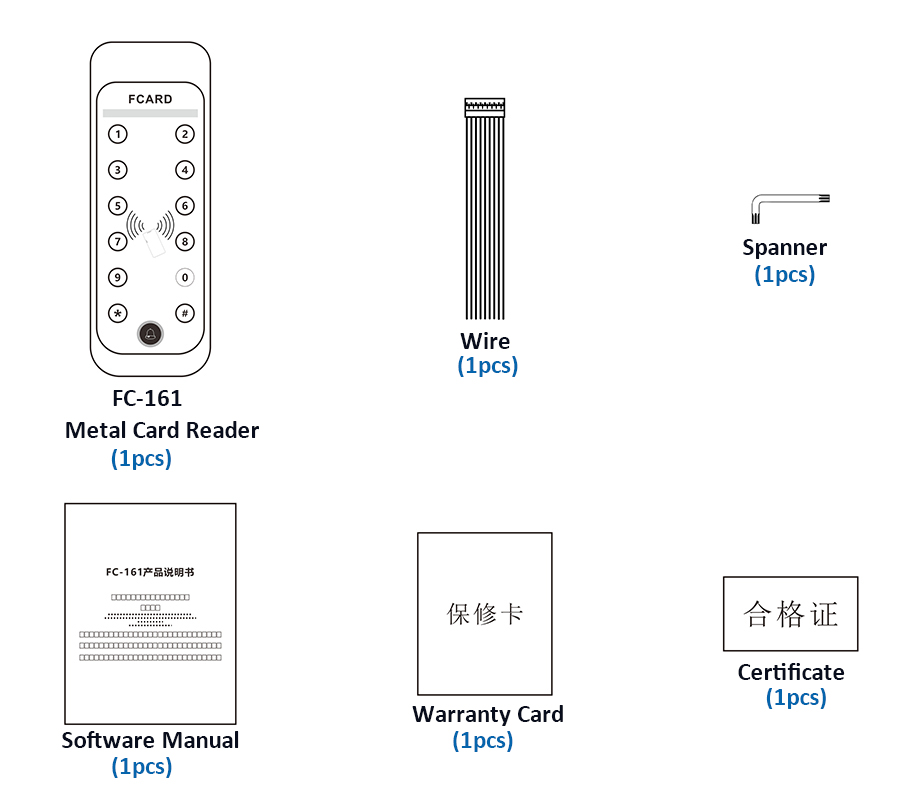

Parts List:

Keyboard RFID Card Reader  Parts List
