Hello, we have purchased your FC-8200T face recognition access controller, several magnetic locks and access control power supply. Please provide the connection diagram of the product.

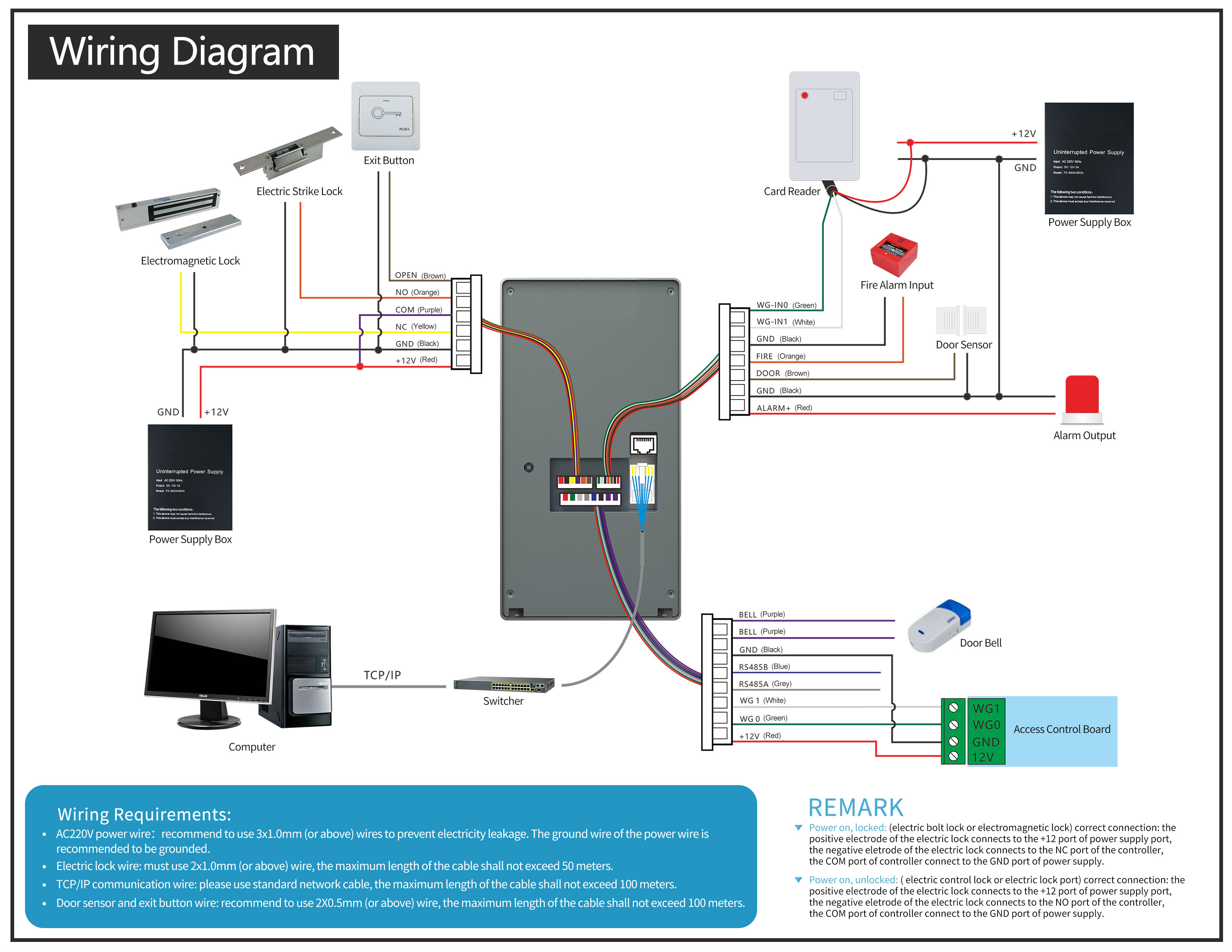

Hello, welcome to use our products, thank you for your support. The following is the wiring diagram of the FC-8200T face recognition access controller: (with photos)

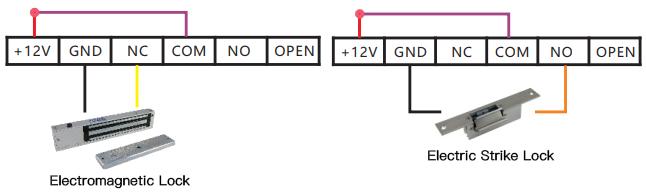

Magnetic lock or electric mortise lock (closed door type electric lock when power on): The positive pole of the electric lock is connected to the face recognition access controller NC (yellow wire), the negative pole of the electric lock is connected to the face recognition access controller GND (black wire), and then the face recognition access controller COM ( Purple wire) and +12V (red wire) are connected in parallel.
Strike lock or electric control lock (power-on type electric lock): the positive electrode of the electric lock is connected to the face recognition access controller N0 (orange wire), the negative electrode of the electric lock is connected to the face recognition access controller GND (black wire), and then the face recognition access controller COM ( Purple wire) and +12V (red wire) are connected in parallel.
