Thanks to new and old users for their attention and support to Fcard Electronics, we can achieve today's steady development. We hope that our broad development prospects will provide better support for your career.
Due to various external factors, especially this year, sales are at a low point. Some manufacturers have been in a conservative development state according to the current market conditions. Yingze Electronics has been insisting on bold attempts to develop cutting-edge products that meet market demand and ensure synchronization with the market.
Fcard Electronics looks forward to your joining! Thank you for your support along the way!
New Product Release:

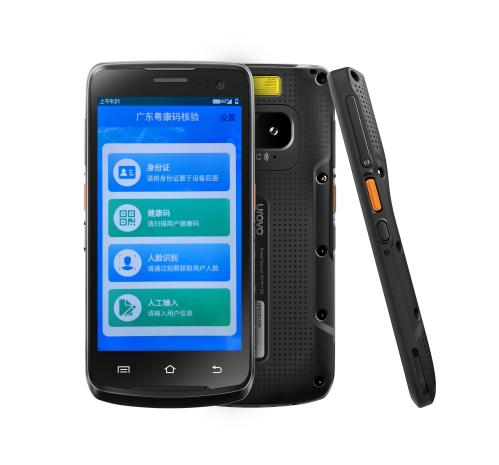

1. Handheld health code checking machine
A handheld health code checking machine developed for the epidemic. The product supports swiping ID cards, scanning health codes, and inputting ID numbers to query personal health code information, nucleic acid information, vaccination information, etc. Currently supported: Guokang Code, Guangdong Health Code + Suikang Code, Hebei Health Code, Sukang Code, Fujian Health Code, Xiangkang Health Code, Suishen Code 1 and 2 Health Code, Shanxi Health Code, Shandong Health Code, Guangxi Health codes can be purchased as needed.
Technical Parameter:
Operating System: Safedroid OS (based on Android 7.1)
Processor: 4-core 1.4GHz
Display: 5-inch color display, resolution 720*1280
Touch Screen: ultra-sensitive capacitive screen, supports multi-touch and glove touch
Camera Functions: Main Camera: 13 million pixels; supports flash, autofocus, video; Front Camera: 8 million pixels, fixed focus
Barcode Scanning: 2D barcode reader optional; can read all international one-dimensional and two-dimensional barcodes; can read screen barcodes and color barcodes; supports camera scanning + green dot positioning
Memory: 2GB RAM, 16GB ROM RTC battery
The main battery is non-detachable, the rechargeable lithium battery is 4000 mAh, and the working time is 10-12 hours (depending on the specific environment)
Charging time: ＜5 hours
Wireless LAN: Wi-Fi/Bluetooth; supports Wi-Fi and Bluetooth coexistence
Wireless WAN: Full Netcom 4G/3G/2G
RFID: Support NFC
Positioning: High-precision GPS, supports A-GPS, Beidou and GLONASS
Size: 156×77×18mm
Weight: 210g (including battery)

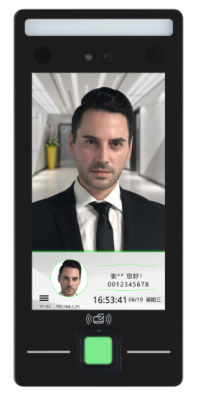

2. FC-8143T Face&Fingerprint Access Control Terminal
This fingerprint access control terminal supports fingerprint, face, card reading, and password opening. Support: Network management through FCARD3500T system management, cloud platform management, mobile APP and WeChat applet management; direct management can also be entered by clicking on the touch screen to enter the menu. Supports USB flash drive to export attendance report, etc.
Technical Parameter:
Main Use: access control, attendance, elevator control host
Capacity: 2,000 faces; 2,000 cards; 2,000 passwords; 2,000 fingerprints
Recording Capacity: 100,000 records; 10,000 recording photos; 10,000 system records
Recognition Distance: 0.3-3m
Working Voltage: DC12V (9~14V)
Working Current: 2000mA
Recognition Speed: < 0.3S
Working Environment: Temperature: -10~65℃; Humidity: 10~90%, no condensation
Comparison Method: 1:N / 1:1
Communication Method: TCP/IP (WIFI optional)
Elevator Expansion: supports elevator/cabinet lock control board expansion interface
Firmware Upgrade: supports OTA upgrade, or U disk firmware upgrade
Operating System: LINUX system
Storage Capacity: memory 512M DDR3, storage 8GB EMMC
Camera: Wide dynamic binocular 2 million high-definition camera
Display: 4.3-inch color screen
Algorithm Support: mask recognition, living body recognition, helmet recognition
Access Control Interface Protocol: Wiegand26/34/66
Other Interfaces: Exit switch × 1, door sensor interface × 1, fire input × 1, alarm output × 1, Wiegand output × 1, Wiegand input × 1, door lock control × 1, USB × 1, RS485 × 1, TCP/ IP×1
Management: touch management, CS system management, BS cloud system management (mobile app management)
Registration Method: face, fingerprint, password, Mifare card (optional for CPU card, ID card, ID card)
Material: ABS body + acrylic panel
Dimension: 184×88×29mm
Weight: 0.3KG

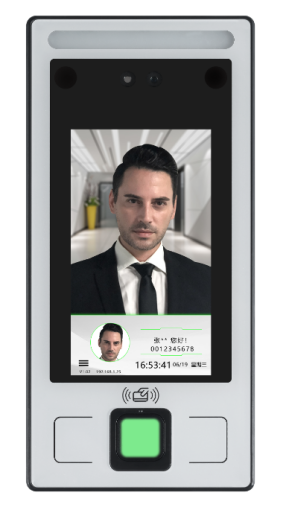

3. FC-8155T Face&Fingerprint Access Control Terminal
This face&fingerprint access control terminal supports fingerprint, face, card reading, and password opening. Support network management through FCARD3500T system management, cloud platform management, mobile APP; direct management can also be entered by clicking on the touch screen to enter the menu. Supports USB flash drive to export attendance report, adopts metal CNC carving technology, configures screen card reading solution, and optional SONY series HD high-recognition rate camera.
Technical Parameters:
Main Use: access control, attendance, elevator control host, optional video intercom host function
User Capacity: 20,000 faces; 20,000 cards; 20,000 passwords; 2,000 fingerprints
Recording Capacity: 1,000,000 records; 50,000 recording photos; 10,000 system records
Recognition Distance: 0.3-3 m
Working Voltage: DC12V (9~14V)
Working Current: 2000mA
Recognition Speed: < 0.3S
Working Environment: Temperature: -10~65℃; Humidity: 10~90%, no condensation
Comparison Method: 1:N /1:1
Communication: TCP/IP (WIFI optional)
Elevator Expansion: supports elevator/cabinet lock control board expansion interface
Firmware Upgrade: supports OTA upgrade, or USB flash drive firmware upgrade
Operating System: LINUX system
Storage Capacity: 1GB DDR3 memory, 8GB EMMC storage
Camera: Wide dynamic binocular 2 million HD camera
Display: 5.5-inch IPS color screen
Algorithm Support: mask recognition, livness detection recognition, helmet recognition
Access Control Interface Protocol: Wiegand26/34/66
Other Interfaces: exit switch × 1, door sensor × 1, fire input × 1, alarm output × 1, Wiegand output × 1, Wiegand input × 1, door lock control × 1, USB × 1, RS485 × 1, TCP/ IP×1
Management: touch management, CS system management, BS cloud system management (mobile app management)
Registration Method: face, fingerprint, password, Mifare card (optional for CPU card, ID card)
Material: Aluminum alloy body + tempered glass panel
Dimension: 192×86×23mm
Weight: 0.7KG

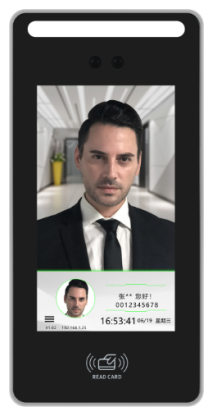

4. FC-8150 Face Recognition Access Control Terminal
This metal face recognition access control terminal supports face, card reading, and password opening. Support network management through FCARD3500T system management, cloud platform management, mobile APP; direct management can also be entered by clicking on the touch screen to enter the menu. Supports USB flash drive to export attendance report.
Technical Parameters:
Main Use: access control, attendance, elevator control host, optional video intercom host function
User Capacity: 20,000 faces; 20,000 cards; 20,000 passwords; 2,000 fingerprints
Recording Capacity: 1,000,000 records; 50,000 recording photos; 10,000 system records
Recognition Distance: 0.3-3 m
Working Voltage: DC12V (9~14V)
Working Current: 2000mA
Recognition Speed: < 0.3S
Working Environment: Temperature: -10~65℃; Humidity: 10~90%, no condensation
Comparison Method: 1:N /1:1
Communication: TCP/IP (WIFI optional)
Elevator Expansion: supports elevator/cabinet lock control board expansion interface
Firmware Upgrade: supports OTA upgrade, or USB flash drive firmware upgrade
Operating System: LINUX system
Storage Capacity: 1GB DDR3 memory, 8GB EMMC storage
Camera: Wide dynamic binocular 2 million HD camera
Display: 5-inch IPS color screen
Algorithm Support: mask recognition, livness detection recognition, helmet recognition
Access Control Interface Protocol: Wiegand26/34/66
Other Interfaces: exit switch × 1, door sensor × 1, fire input × 1, alarm output × 1, Wiegand output × 1, Wiegand input × 1, door lock control × 1, USB × 1, RS485 × 1, TCP/ IP×1
Management: touch management, CS system management, BS cloud system management (mobile app management)
Registration Method: face, password, Mifare card (optional for CPU card, ID card)
Material: metal casing + tempered glass panel
Dimension: 179×87×22mm

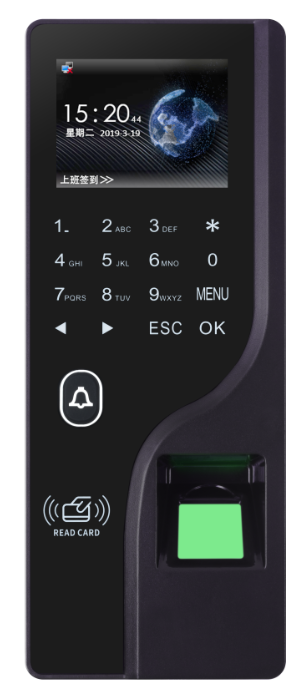

5. FC-C104 Fingerprint Access Control Terminal
This fingerprint access control terminal supports fingerprint, card reading, and password opening. Support network management through FCARD3500T system management, cloud platform management, mobile APP; direct management can also be entered into the menu through button operation.
Technical Parameters:
Main Use: access control, time attendance
User Capacity: 500 fingerprints, 500 cards, 500 passwords
Record Capacity: 200,000 attendance records
Working Voltage: DC12V (9~14V)
Working Current: 500mA
Recognition Speed: < 0.3S
Working Environment: Temperature: -10~70℃; Humidity: 10~90%, no condensation
Firmware Upgrade: U disk firmware upgrade
Operating System: LINUX system
Fingerprint Collection Area: 20×17 mm
Collection Angle Range: ±45°
False Recognition Rate: < 0.0001%
Rejection Rate: < 0.01%
Display: 2.4-inch TFT color screen
Access Control Interface Protocol: Wiegand26/34/66
Other Interfaces: Exit switch × 1, door sensor × 1, fire input × 1, alarm output × 1, Wiegand output × 1, Wiegand input × 1, door lock control × 1, USB × 1, RS485 × 1, TCP/ IP×1
Management Method: button management, CS system management, BS cloud system management (mobile app management)
Registration Method: fingerprint, password, ID card (optional support for CPU card, Mifare card)
Material: ABS casing
Dimension: 197×78×33mm
Weight: 0.2KG
6. FC-B104 Fingerprint Access Control Terminal
This fingerprint access control terminal supports fingerprint, card reading, and password opening. Support network management through FCARD3500T system management, cloud platform management, mobile APP; direct management can also be entered into the menu through button operation.
Technical Parameters:
Main Use: access control, time attendance
User Capacity: 500 fingerprints, 500 cards, 500 passwords
Record Capacity: 200,000 attendance records
Working Voltage: DC12V (9~14V)
Working Current: 500mA
Recognition Speed: < 0.3S
Working Environment: Temperature: -10~70℃; Humidity: 10~90%, no condensation
Firmware Upgrade: USB flash drive firmware upgrade
Operating System: LINUX system
Fingerprint Collection Area: 20×17 mm
Collection Angle Range: ±45°
False Recognition Rate: < 0.0001%
Rejection Rate: < 0.01%
Display: 2.4-inch TFT color screen
Access Control Interface Protocol: Wiegand26/34/66
Other Interfaces: Exit switch × 1, door sensor × 1, fire input × 1, alarm output × 1, Wiegand output × 1, Wiegand input × 1, door lock control × 1, USB × 1, RS485 × 1, TCP/ IP×1
Management Method: button management, CS system management, BS cloud system management (mobile app management)
Registration Method: fingerprint, password, ID card (optional support for CPU card, Mifare card)
Material: ABS casing
Dimension: 197×78×33mm
Weight: 0.2KG
7. FC-U104 Fingerprint Access Control Terminal (Standalone-No Networking)
This enconomical fingerprint access control terminal supports fingerprint, card reading, and password opening. Direct management can also be entered into the menu through button operation. Support USB flash drive to export attendance report, support to connect the elevator expansion board directly manage the elevator or cabinet door.
Technical Parameters:
Main Use: access control, time attendance
User Capacity: 500 fingerprints, 500 cards, 500 passwords
Record Capacity: 200,000 attendance records
Working Voltage: DC12V (9~14V)
Working Current: 500mA
Recognition Speed: < 0.3S
Working Environment: Temperature: -10~70℃; Humidity: 10~90%, no condensation
Firmware Upgrade: USB flash drive firmware upgrade
Operating System: LINUX system
Fingerprint Collection Area: 20×17 mm
Collection Angle Range: ±45°
False Recognition Rate: < 0.0001%
Rejection Rate: < 0.01%
Display: 2.4-inch TFT color screen
Access Control Interface Protocol: Wiegand26/34/66
Other Interfaces: Exit switch × 1, door sensor × 1, fire input × 1, alarm output × 1, Wiegand output × 1, Wiegand input × 1, door lock control × 1, USB × 1, RS485 × 1
Management Method: keypad management, USB flash drive attendance
Registration Method: fingerprint, password, ID card (optional support for CPU card, Mifare card)
Material: ABS casing
Dimension: 197×75×29mm
Weight: 0.2KG
8. FC-A07 Fingerprint Access Control Terminal
The 86-type small fingerprint machine supports button management and can use fingerprints, card readers, and passwords to open the door; the device can be used as an access control reader, supporting ID card or Mifare card, or you can choose to support dual-frequency cards at the same time. It has built-in voice prompts and supports Chinese and English.
Technical Parameter:
Main Use: access control host, fingerprint card reader
User Capacity: 1000 people, 1000 fingerprints, 1000 cards, 1000 passwords
Working Voltage: DC12V (9~14V)
Working Current: 500mA
Recognition Speed: < 0.3S
Working Environment: Temperature: -10~70℃; Humidity: 10~90%, no condensation
Communication Interface: RS485 (for reading head), USB
Fingerprint Collection Area: 20×17 mm
Collection Angle Range: ±45°
False Recognition Rate: < 0.0001%
Rejection Rate: < 0.01%
Access Control Interface Protocol: Wiegand26/34/66
Other Interfaces: Exit switch × 1, door sensor × 1, fire input × 1, alarm output × 1, Wiegand output × 1, Wiegand input × 1, door lock control × 1, USB × 1, RS485 × 1
Management Method: keypad management
Registration Method: fingerprint, password, ID card (optional for CPU card, Mifare card)
Material: ABS body
Dimension: 89×89×33.5mm
Weight: 0.2KG
9. FC-8911H QR Code Access Controller
Networking QR code access controller supports dynamic QR code, one-dimensional code, Mifare card and other formats to open the door; supports TCP/IP networking, can be managed through the FCARD3500T one-card management system; support cloud platform management, mobile APP Management; QR code adopts dynamic encryption rolling password.
Technical Parameter:
Main Use: access control, attendance
User Capacity: 42,000 cards; 42,000 passwords
Record Capacity: 200,000 records
Working Voltage: DC12V (9~14V)
Working Current: <500mA
Recognition Speed: < 0.1S
Working Environment: Temperature: -25~70℃; Humidity: 10~90%, no condensation
Code Scanning: static one-dimensional code + static two-dimensional code + dynamic two-dimensional code (encrypted password)
QR Code Triggering Method: automatic sensing
Support: Mifare card, CPU card, bank card, mobile phone NFC and other cards
Interface Output: Wiegand26/34/66, RS485 bus
Other Interfaces: Exit switch × 1, door sensor × 1, fire input × 1, alarm output × 1, door lock control × 1
Communication Method: 1 group 10/100M TCP/IP
Prompt Method: LED flashing green light, voice prompt
Scanning Angle: tilt angle ±55°, rotation 360°
QR Code Reading Distance: 1～20cm
Dimension: 140×80×21.5mm

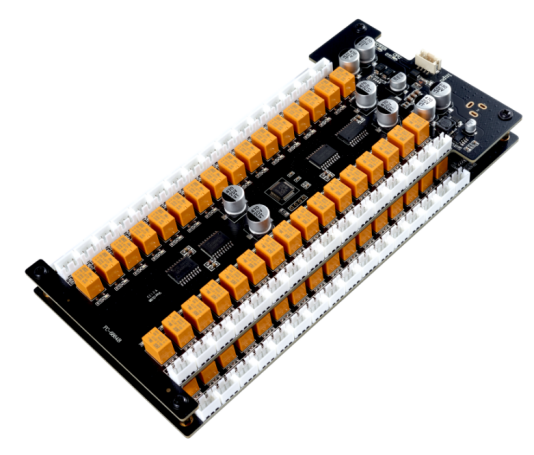

10. FC-6864A/B Elevator Board Used for Face&Fingerprint
Used for the extended use of elevator management functions of fingerprint machines and face machines such as FC-A102, FC-U104, FC-8150, FC-8180, FC-8300, FC-8143, FC-8155, etc., FC-6864 is derived from FC-6864A It is composed of two models of FC-6864B, respectively for the control of floors 1-32 and 33-64. This product alone cannot manage elevators and needs to be used with a corresponding fingerprint access control terminal or facial recognition access control terminal.

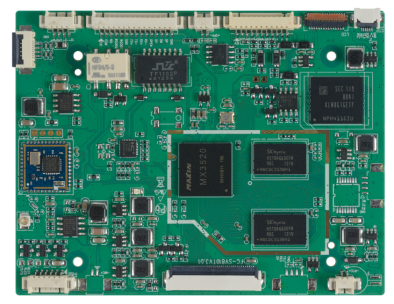

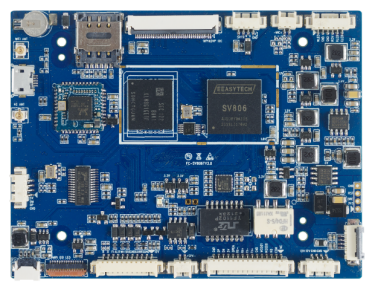

11. FC-SV806 Main Board for Face Recognition Access Control Terminals
FC-SV806W standard face recognition access control terminals’core board, which is mainly used for customers to integrate face, intercom, access control, and attendance functions. Simple assembly can complete the production of face recognition products and assemble your own customized products.
Technical Parameter:
Main Use: access control, time and attendance, elevator access control, video intercom main board
User Capacity: 5,000 faces; 5,000 cards; 5,000 passwords
Record Capacity: 1 million identification records; 50,000 recording photos, 10,000 system records
Recognition Distance: 0.3-2m
Working Voltage: DC12V (9~14V)
Working Current: <200mA (single motherboard power consumption)
Recognition Speed: < 0.3S
Working Environment: Temperature: -10~65℃; Humidity: 10~90%, no condensation
Comparison Method: 1:N / 1:1
Communication Method: TCP/IP+WIFI (4G communication optional)
Elevator Expansion: supports elevator/cabinet lock control board expansion interface
Firmware Upgrade: supports OTA upgrade, or U disk firmware upgrade
Operating System: LINUX system
Storage Capacity: storage 8GB EMMC
Camera: Wide dynamic binocular 2 million high-definition camera
Display: Supports 5, 7, 8, and 10-inch IPS full-viewing HD screens
Algorithm Support: mask recognition, liveness detection recognition, helmet recognition
Access Control Interface Protocol: Wiegand26/34/66
Other Interfaces: Exit switch × 1, door sensor × 1, fire input × 1, alarm output × 1, Wiegand output × 1, Wiegand input × 1, door lock control × 1, USB × 1, RS485 × 1, temperature measurement Port × 1, speaker × 1, microphone port × 1, card reading coil × 1, MIPI screen × 1, CTP × 1
Management Method: touch management, CS system management, BS cloud system management (mobile app management)
Registration Method: face, password, Mifare card (optional support for CPU card, ID card, fingerprint)
Dimension: 92×70×10mm
12. FC-SV810 Main Board for Face Recognition Access Control Terminals
FC-SV810W high-end face recognition access control terminals’core board, which is mainly used for customers to integrate face, intercom, access control, and attendance functions. Simple assembly can complete the production of face recognition products and assemble your own customized products.
Technical Parameter:
Main Use: access control, time and attendance, elevator access control, video intercom main board
User Capacity: 50,000 faces; 50,000 cards; 50,000 passwords
Record Capacity: 1 million identification records; 50,000 recording photos, 10,000 system records
Recognition Distance: 0.3-2m
Working Voltage: DC12V (9~14V)
Working Current: <300mA (single motherboard power consumption)
Recognition Speed: < 0.3S
Working Environment: Temperature: -10~65℃; Humidity: 10~90%, no condensation
Comparison Method: 1:N / 1:1
Communication Method: TCP/IP+WIFI
Elevator Expansion: supports elevator/cabinet lock control board expansion interface
Firmware Upgrade: supports OTA upgrade, or USB flash drive firmware upgrade
Operating System: LINUX system
Storage Capacity: storage 16 GB EMMC
Camera: Wide dynamic binocular 2 million high-definition camera
Display: Supports 5, 7, 8, and 10-inch IPS full-viewing HD screens
Algorithm Support: mask recognition, liveness detection recognition, helmet recognition
Access Control Interface Protocol: Wiegand26/34/66
Other Interfaces: Exit switch × 1, door sensor × 1, fire input × 1, alarm output × 1, Wiegand output × 1, Wiegand input × 1, door lock<
