I want to use FC-8100T as a face recognition card reader, how to connect with your access controller through WG26? How to realize software authorization? Then the WG is passed to the controller to identify the door open. Please provide the interface for connection and software operation.

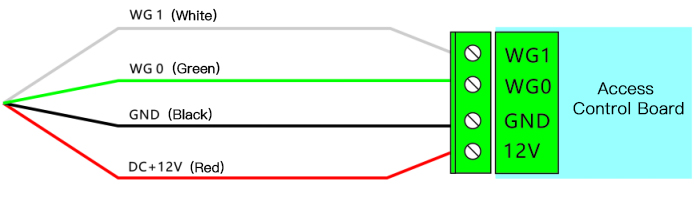

Hello, welcome to use our products, thank you for your support. The wiring of FC-8100T as the face recognition card reader of the access control board is as follows: the +12v line of the face recognition access controller is connected to the +12v terminal of the access control board, the GND line of the face recognition access controller is connected to the GND terminal of the access control board, and the WG0 line of the face machine is correspondingly connected, to the WG0 terminal of the access control board, the WG1 line of the face recognition access controller is correspondingly connected to the WG1 terminal of the access control board, the wiring diagram is as follows: (with photos)
Note: Regardless of whether the face recognition controller is powered by the access controller or not, you must ensure that it and the access controller are connected to GND to ensure stable Wiegand signal transmission.
Software authorization operations are as follows:
1. New personnel: fill in the corresponding personnel information, such as name, card number, profile picture, personal password and other information; (with photos)
2. Access level setting: select the person who needs to be authorized and the door device (face recognition access controller, access control board, fingerprint access controller, etc.) that the person needs to authorize, and select the door opening time, number of door openings, expiration date and other information according to your needs, and click ' Allow the selected personnel to pass through the selected door and upload', the authorization is completed. (With photos)
