We purchased your face recognition access controller (FC-8100T), and would like to know how to connect two locks, please provide the connection diagram.
Hello, welcome to use our products, thank you for your support. FC-8100T face recognition access controller can be connected with power-on lock and power-on lock. Their respective wiring instructions are as follows:

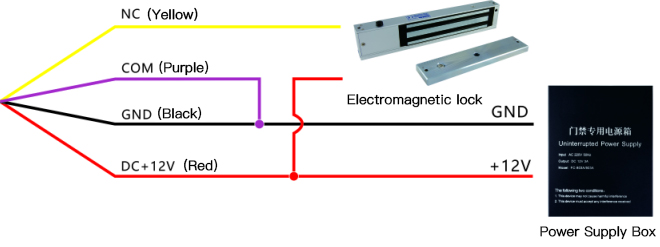

Magnetic lock or electric bolt lock (closed door type electric lock when power on): The negative electrode of the electric lock is connected to the face recognition access controller NC (yellow wire), the positive electrode of the electric lock is connected to the face recognition access controller DC+12V (red wire), and then the face recognition access controller COM ( Purple wire) and GND (black wire) are connected in parallel.

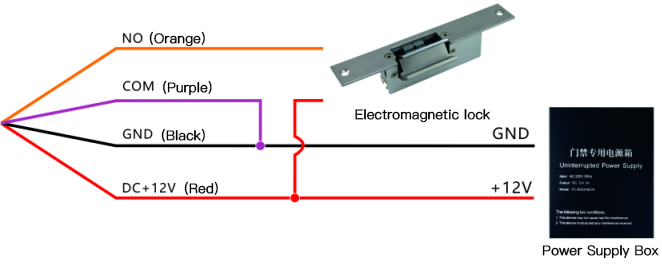

Strike lock or electric control lock (electric lock with power on to open the door): the negative electrode of the electric lock is connected to the face recognition access controller NO (orange wire), the positive electrode of the electric lock is connected to the face recognition access controller DC+12V (red wire), and then the face recognition access controller COM ( Purple wire) and GND (black wire) are connected in parallel.
